Drill Pipe
Classification :
Keywords:
Drill Pipe
Description

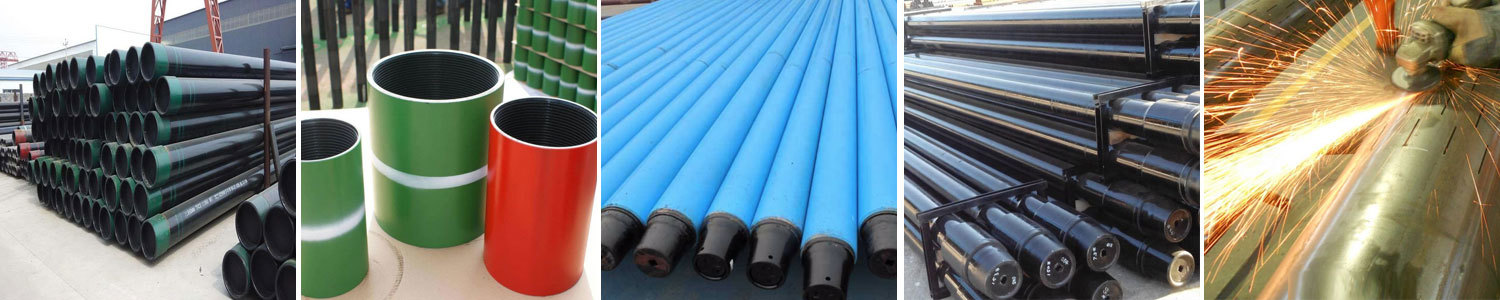

Drill pipes are long tubular sections of pipe that make up the majority of the drill string. They are typically a 31 foot long section of tubular pipe but may be anywhere from 18 to 45 feet in length.
Heavy weight drill pipe (HWDP) is a tubular pipe that adds weight or acts as a transitional piece in the drill string. As a transitional section of the drill string, it is placed between the drill collar and standard drill pipe to reduce fatigue failures. In other applications the HWDP is used as an additional weight to weigh down the drill string.
Heavy weight drill pipe is a medium-weight drilling pipe, (referred standards in API SPEC 7-1). It has bigger wall thickness than common drilling pipe and smaller than drill collar.
Drill collars are a component of the drill string that makes up part of the BHA. They are thicker-walled, heavier, and more rigid than drill pipes and are primarily used to weigh down the drill bit while dampening vibration and impact forces.
Drill Pipe:2-3/8" to 7-5/8" OD, Range 2 and 3
Heavy Weight pipe:2-3/8" to 6-5/8" OD, Range 2 and 3
Drill Collars:2-7/8" to 14"
Grades: E75, X95, G105, S135
Connection threads:NC26, NC31, NC38, NC40, NC46, NC50, 5 1/2FH.6 5/8FH.
Internal Upset: IU, EU, IEU
Specification
| Size designation | Calculated weight | Tool joint designation | Calculated weight | grade | Wall thickness | Upset ends | ||
| in | 1b/ft | Kg/m | in | mm | ||||
| 2 3/8 | 6.65 | NC26 | 6.26 | 9.32 | E.X.G.S | 0.28 | 7.11 | EU |
| 2 7/8 | 10.4 | NC31 | 9.72 | 14.48 | E.X.G.S | 0.362 | 9.19 | EU |
| 3 1/2 | 13.3 | NC38 | 12.31 | 18.34 | E.X.G.S | 0.368 | 9.35 | EU |
Company video
Company Profile
Shandong Hangmei Steel Co., Ltd. is a company integrating production and trade, with 10 years of domestic and foreign iron and steel product competition experience, to provide reliable service to customers around the world. The main products are steel pipe, steel plate, steel coil, steel bar, steel strip, steel, silicon steel, stainless steel series, carbon steel series, aluminum products and so on.
Packing and shipping
The company is adjacent to Qingdao Port and Tianjin Port, and the export traffic conditions of Shanghai Port are convenient. Annual sales volume is more than 8 million tons. Products are exported to more than 90 countries and regions. We have won the recognition of customers with good reputation and good service. The company has passed ISO9001 quality system certification and CE certification. All products conform to American standard ASTM, Japanese standard JIS, German standard DIN, British standard BS and so on. We support SGS and BV third party testing.
Application field
The products are widely used in precision instruments, aviation, ships, automobiles, home appliances, construction, Bridges, boilers, highway guardrails and other industries.
Craftsmanship
Customer visit
Our philosophy is customer first, win-win cooperation, our product purpose is "focus, focus, professional". We sincerely welcome customers from all over the world to visit our company to discuss long-term cooperation.
